NC65

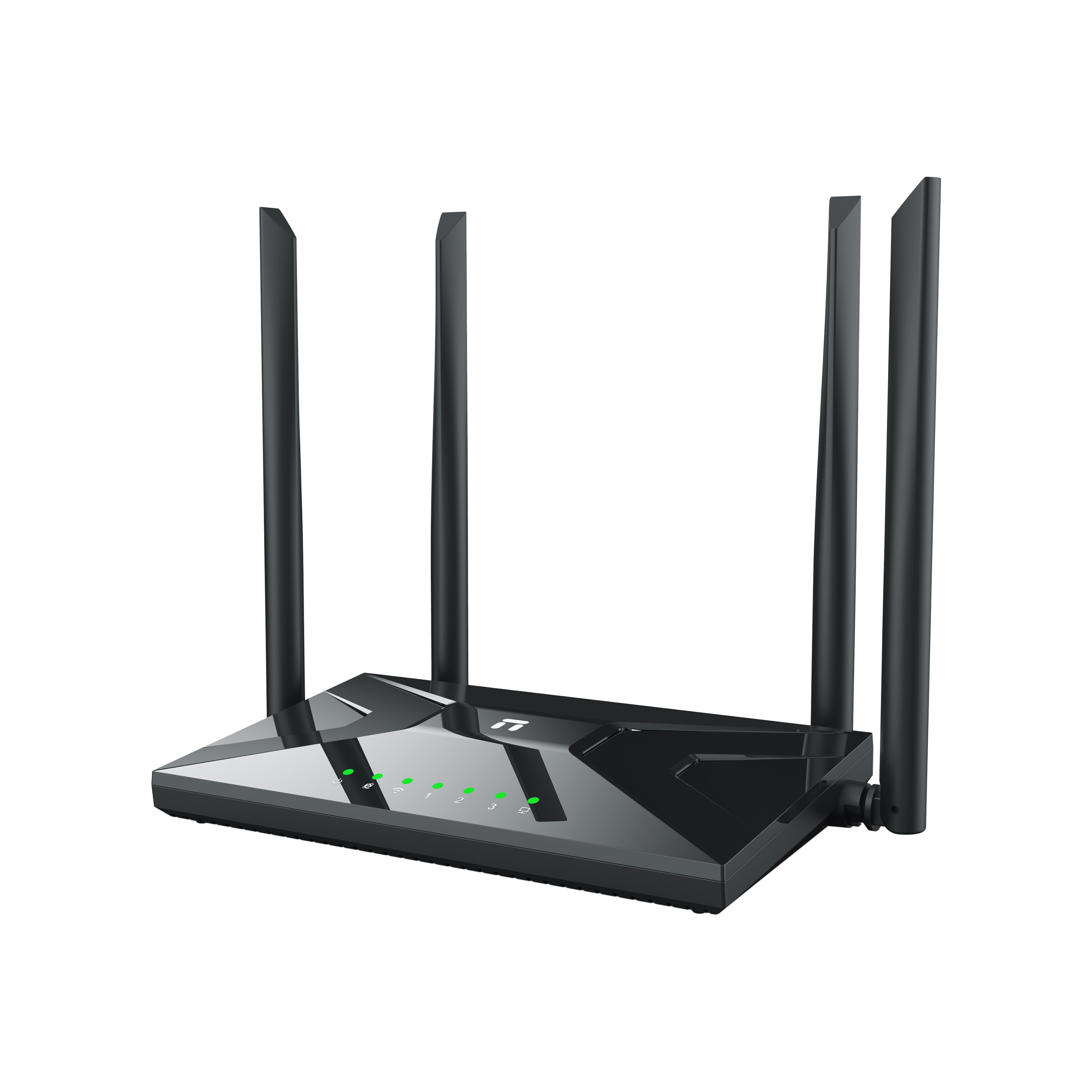

Роутер netis NC65 Гигабитный Двухдиапазонный с поддержкой Easy Mesh
-
- Полная поддержка устройств 802.11a/b/g/n/ac.
- Одновременная поддержка соединений 2,4 ГГц (до 300 Мбит/с) и 5 ГГц (до 867 Мбит/с)
- Поддержка различных типов подключения к WAN-сетям в режиме маршрутизатора: точки доступа DHCP, поддержка статических IP-адресов, PPPoE, L2TP, PPTP, Dual Access (PPPoE/PPTP/L2TP для России), поддержка IPv6 и TR-069
- Несколько режимов работы беспроводной сети: Точка доступа (AP), Повторитель, Клиент.
- Поддержка Multi-SSID с созданием отдельных дополнительных сетей для гостей и друзей.
- 4 антенны с высоким коэффициентом усиления 5 дБи.
- Простые настройки безопасности беспроводной сети одним нажатием кнопки WPS.
- Интеллектуальное управление оптимальным использованием полосы пропускания каждым компьютером.
- Контроль доступа в Интернет: фильтрация IP-адресов, фильтрация MAC-адресов, фильтрация доменов по времени.
- Гигабитные порты обеспечивают высокоскоростное соединение Ethernet.
- Быстрая настройка со встроенной многоязычной страницей управления.
- IPv6
- Функция Easy Mesh — это бесшовный Wi-Fi дома, в квартире и в офисе
High Speed
Home WiFi !
Stable and Reliable
Home WiFi !
Stable and Reliable

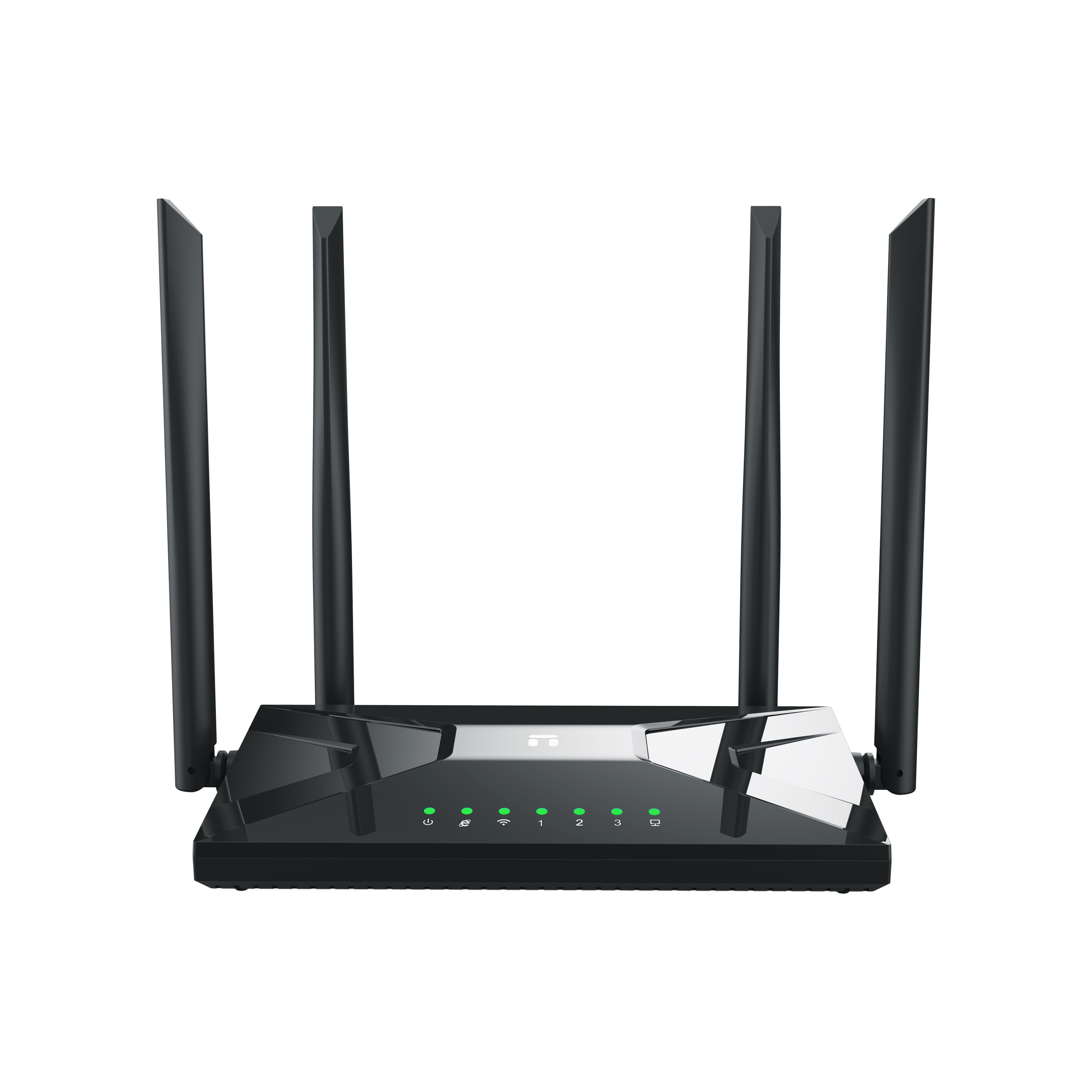

AC1200 Wireless Dual Band Gigabit Router
NC65
1GHz CPU
Easy-Mesh
Gigabit Port
BeeWiFi APP Managed
2.4G+5G
MU-MIMO
Easy Setup
IPV6
AC1200 Dual Band WiFi
Enjoy home entertainment without any lag, reaching speeds up to 1200Mbps.
(867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
(867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
1GHz CPU
Enjoy Smooth HD Videos and Games
Equipped with Realtek 1GHz high performance processor, NC65 manifests excellent capacity on data processing and energy conservation.
Easy Mesh
Whole Home Seamless WiFi, Stay Connected Everywhere
If you want to set up a unified WiFi network, by using Netis Easy Mesh Function, you can configure multiple nodes with NC65 to build up a flexiable, scalable and seamless mesh WiFi throughout your home.

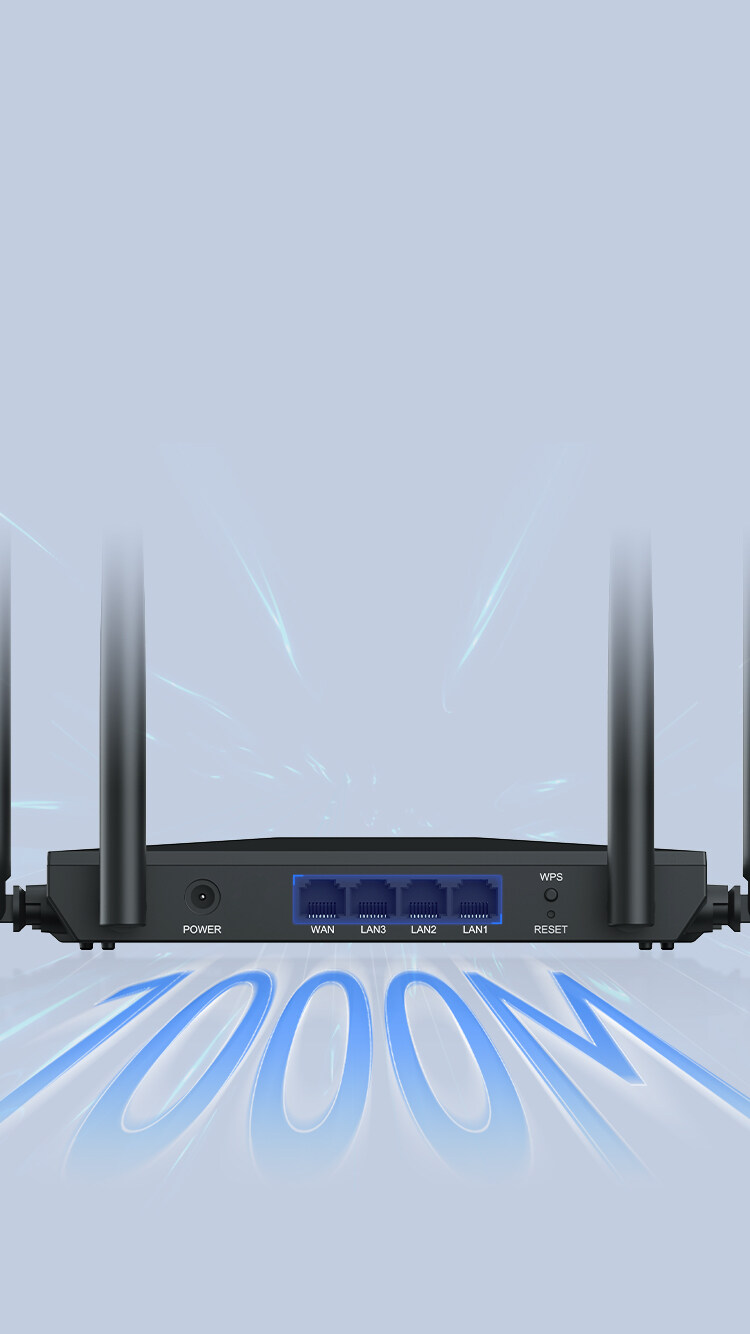

All Gigabit Ports
Ideal for Your Ever-increasing Fiber Bandwidth
As dedicated to serve for fiber bandwidth up to 100M, 200M, 500M and above, NC65 designed with full gigabit WAN and LAN ports,
provides data transmission 10* faster than ethernet ports.
provides data transmission 10* faster than ethernet ports.

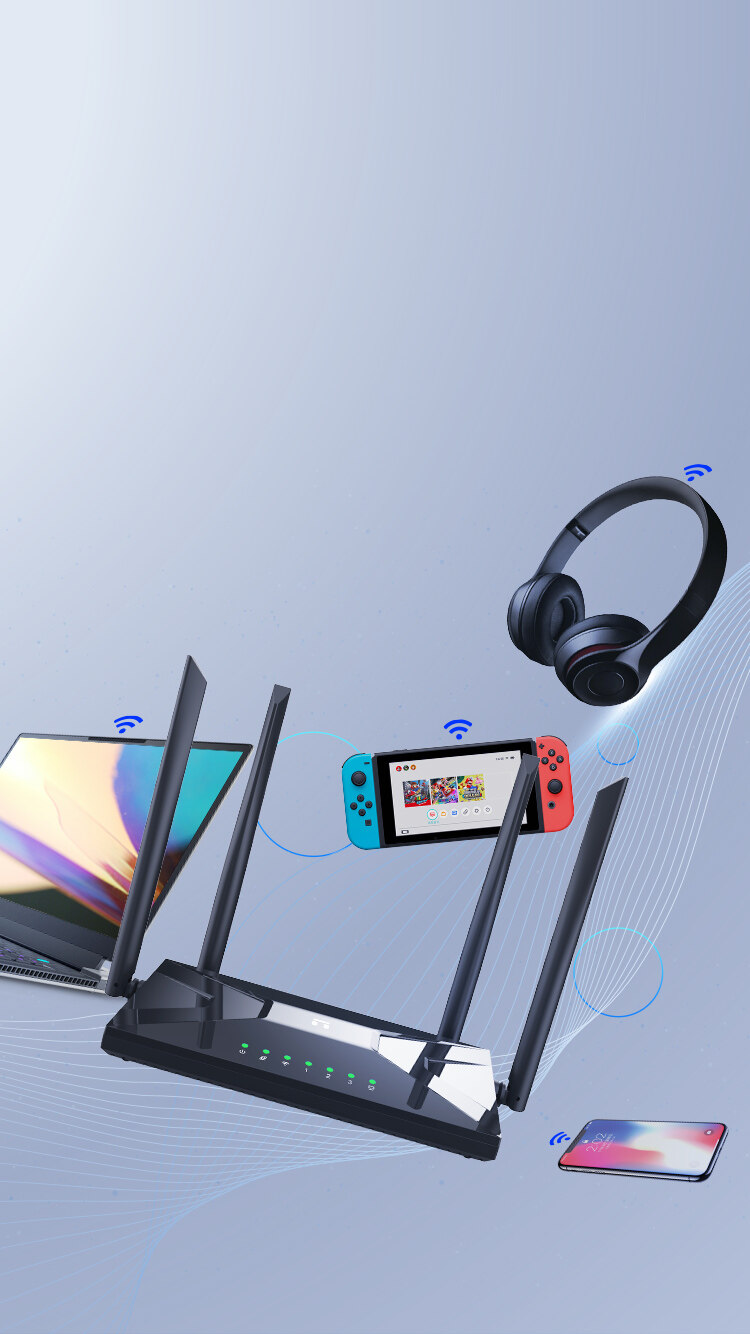

MU-MIMO Technology
Mutiple Devices to Connect Simultaneously
NC65 is the superior choice for playing seamless HD streaming, online gaming and other bandwidth-intensive tasks at the same time to allow connected devices achieve faster speeds than standard AC routers, improving network efficiency.

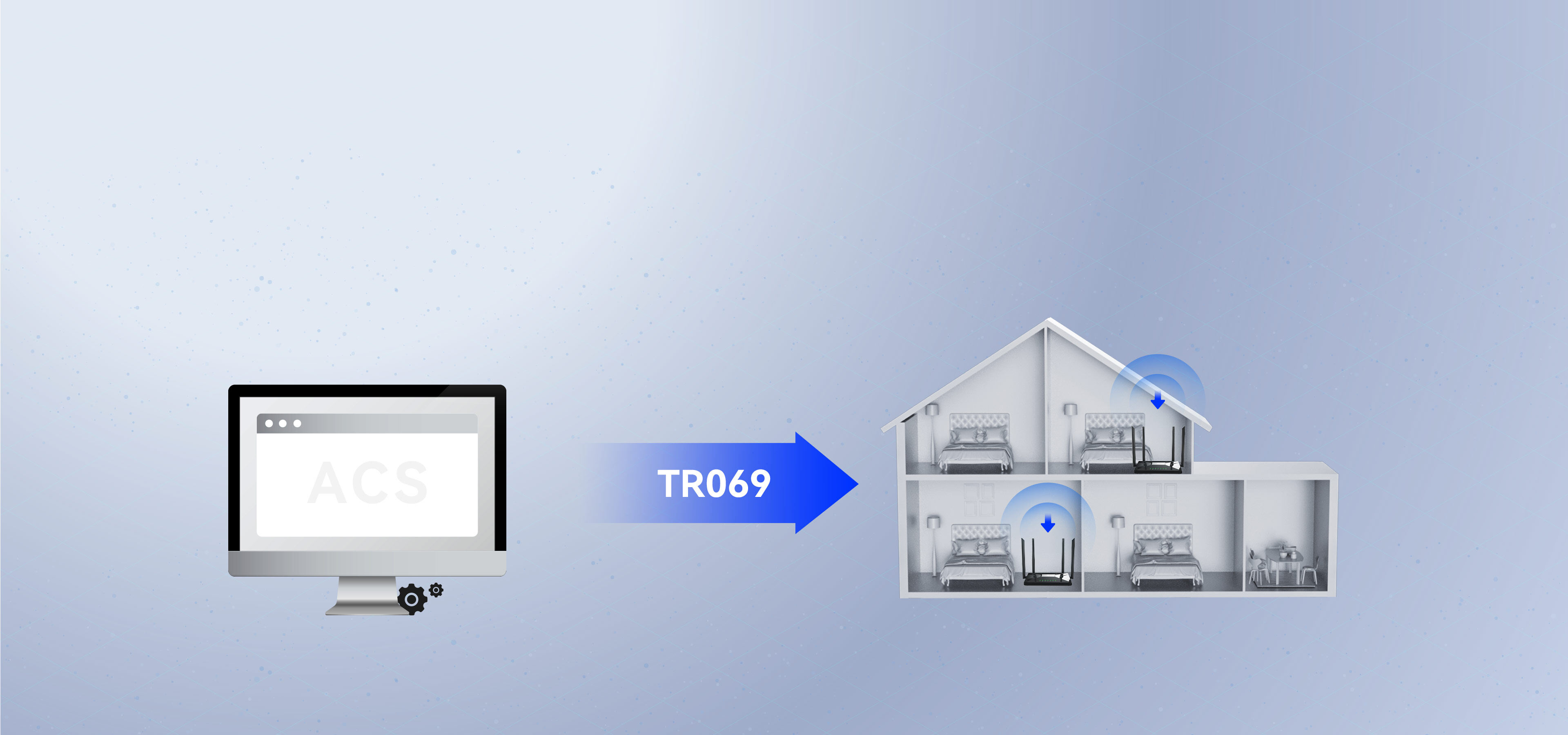

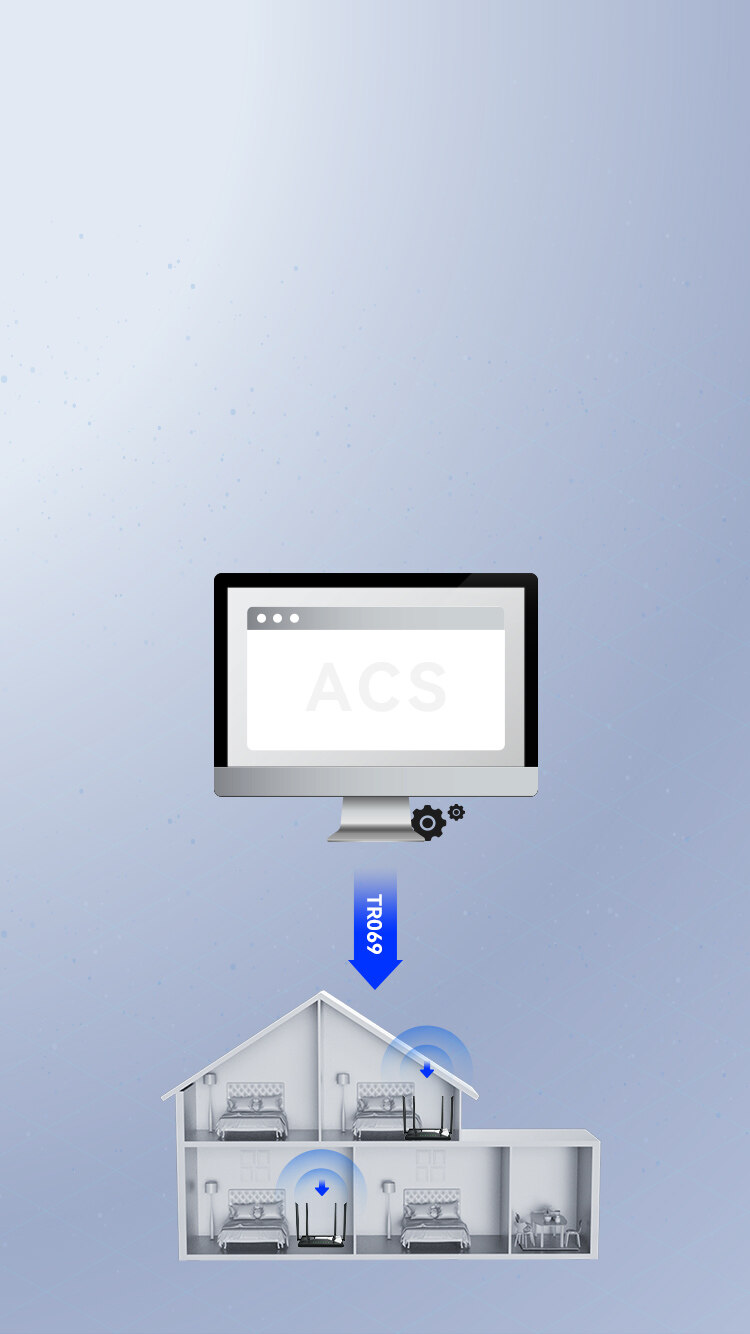

Compliant TR069 Protocols for Telecom Operators
NC65 is dedicate not only for consumers but also friendly for the telecom operators, which supports device management and control remotely via their ACS (Auto-Configuration Sever) system.

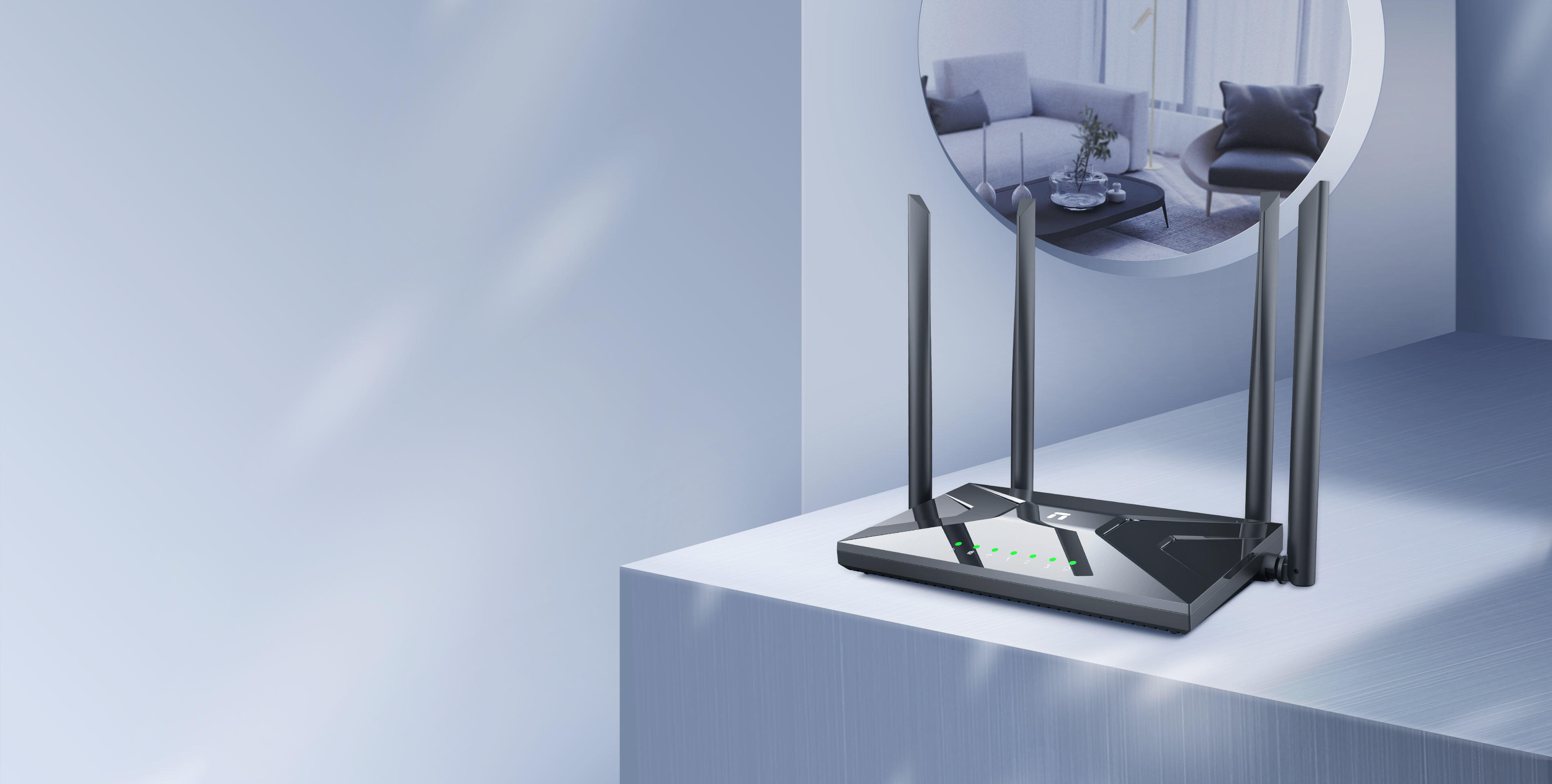

Easy Setup and User Friendly
Set up your router in minutes with easy steps.
BeeWiFi APP Supported
NC65 supports app management, and with the Beewifi router management tool from netis, you can manage your router on mobile devices. It offers a wide range of settings, making router management simple and convenient.
Specification
Wireless
|
Standards |
Wi-Fi 5 IEEE 802.11ac/n 5 GHz IEEE 802.11b/g/n 2.4 GHz |
|
WiFi Speeds |
AC1200 5 GHz: 867Mbps (802.11ac) 2.4 GHz: 300Mbps (802.11n) |
|
WiFi Range |
3 Bedroom Houses 4* Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
|
WiFi Capacity |
Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 5/4 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
|
Working Modes |
AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode |
Hardware
|
Processor |
1GHz CPU |
|
DDR/FLASH |
128MB/8MB |
|

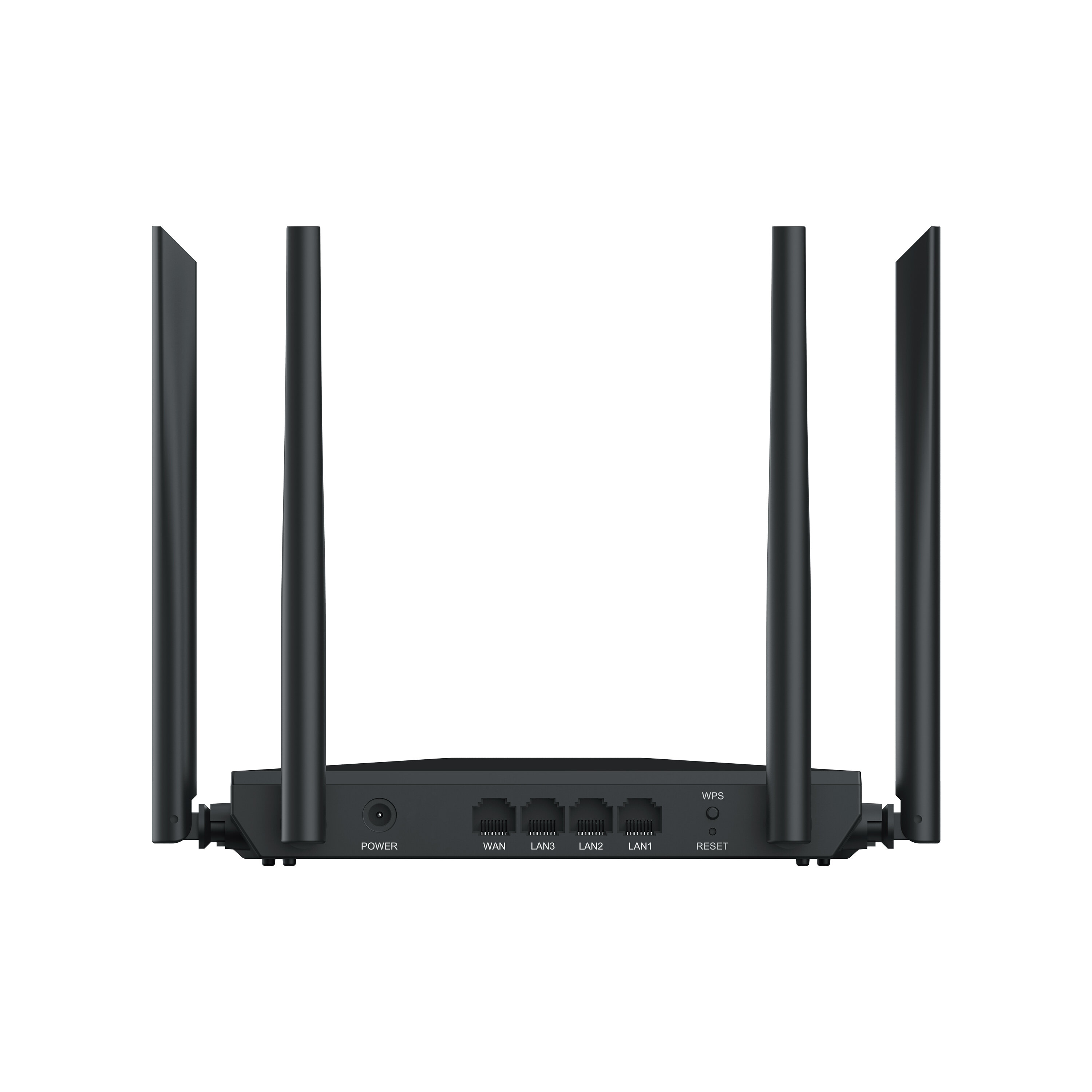

Interface |
1* Gigabit WAN Port+3* Gigabit LAN Ports |
|
Buttons |
WPS/MESH、RESET |
|
Power |
12V1A |
Software
|
WiFi Encryption |
WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
|
Network Security |
Access Control, IP & MAC Binding |
|
Guest Network |
4*5GHz Guest Network /4*2.4GHz Guest Network |
|
Protocols |
IPv4, IPv6 |
|
WAN Types |
DHCP, Static IP, PPPoE, L2TP, PPTP |
|
Quality of Service |
QoS by Device |
|
Forwarding |
Virtual Server, DMZ,UPnP |
|
IPTV |
Bridge, Tag VLAN |
|
DHCP |
Address Reservation, DHCP Client List, DHC Server |
|
Access Control |
IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering |
|
Dynamic DNS |
DynDns, no-ip |
|
IGMP |
IGMP Proxy, IGMP Snooping |
|
VPN |
PPTP Pass-through,L2TP Pass-through,IPSEC Pass-through,SIP Pass-through |
|
Others |
Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore |
Physical
|
Dimensions(W×D×H) |
228*134*188mm |
|
Package Contents |
1*NC65 1* Power Adapter 1* RJ45 Ethernet Cable 1* Quick Installation Guide |
Others
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable Subscription with an internet service provider (for internet access) |
|
Certifications |
FCC, CE, RoHS, EAC, UkrSEPRO |
|
Environment |
Operating Temperature: 0℃~40℃ ( 32℉ ~104℉ ) Storage Temperature: -40℃~70℃ (-40℉ ~158℉ ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Test Data
|
WiFi Transmission Power |
2.4H: 22DB 5G: 19.5DB |
